Temperature (solid) (° C)
exterior view 1 : contour line
Temper ature ambient:25°C
36W/m test
Information
-
①Endcap
-
② Profile
-
③ Pendant
-
④ Power supply
-
⑤ Heat sink
-
⑥ Lighting source
-
⑦ Anti-dazzlegrille
Heated structure
Downloads
Catalogue pageProducts
Order Guide
| Name | Order code | Discription | Size | Color | Picture |
| Heat sink | L.54688S-I-U HSK | AL 6063-TS | 2500mm | silve/b1ack/White(ral9016) |  |
| Anti-glare film | LS5270S-III-UAGF | PMMA | 2500mm | transparent |  |
END CAP | LS4688S-I-U002A | PC | 46*88mm | silver/black/white (ral9016) |    |
Magnet | LS4688S-I-U002B | magnet | - | silver |  |
Magnetic endcap clip | LS4688S-I-U002B | 201 stainless steel | - | silver |  |
PCB | NJG-499-12C10B-2 | Lumen:3000LM P: 36W/m,Ra>80 | Width: 23mm | |  |
Terminal box | LSXXXXSJXH | Anti-fire PC | 80*80*38mm | Silver |  |
| Pendant kit | l.SXXXXSDZJ | Steel wire、CDpper | 2000mm | silver |  |
| Pendant kit | l.SXXXXSDZJ-01 | Steel wire、Opper | 2000mm | silver |  |
| Tenninal box | LSXXXXSJXH-01 | Iron | Φ130mm*H38mm | silver/black/white (ral9016) |  |
| Tenninal box | l.SXXXXSJXH-02 | Iron | Φ130mm*H38mm | silver/black/white (ral9016) |  |
| Tenninal box | l.SXXXXSJXH-03 | Iron | Φ130mm*H38mm | silver/black/white (ral9016) |  |
Embed buckle | LSXXXXSNQB | Stainless steel | - | Silver |  |
Surface mounted clip | LSXXXXSPJBM | Stainless steel | - | unpainted stainless steel |  |
Splicing kit | LSXXXXSPJLA | - | - |  | |
Wire protection | LSXXXXHXB | - | - |  |

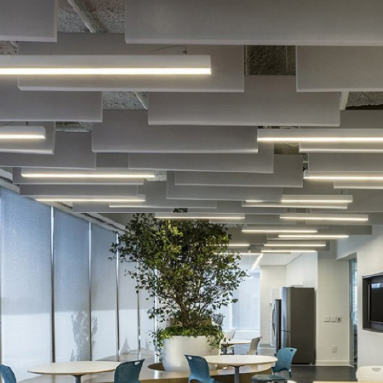

Application effect1
