Temperature ambient:25°C
LED strip:D8280-24V-8mm(14.4W/m)
Temperature (solid) (°C)
exterior view 1 : contour line

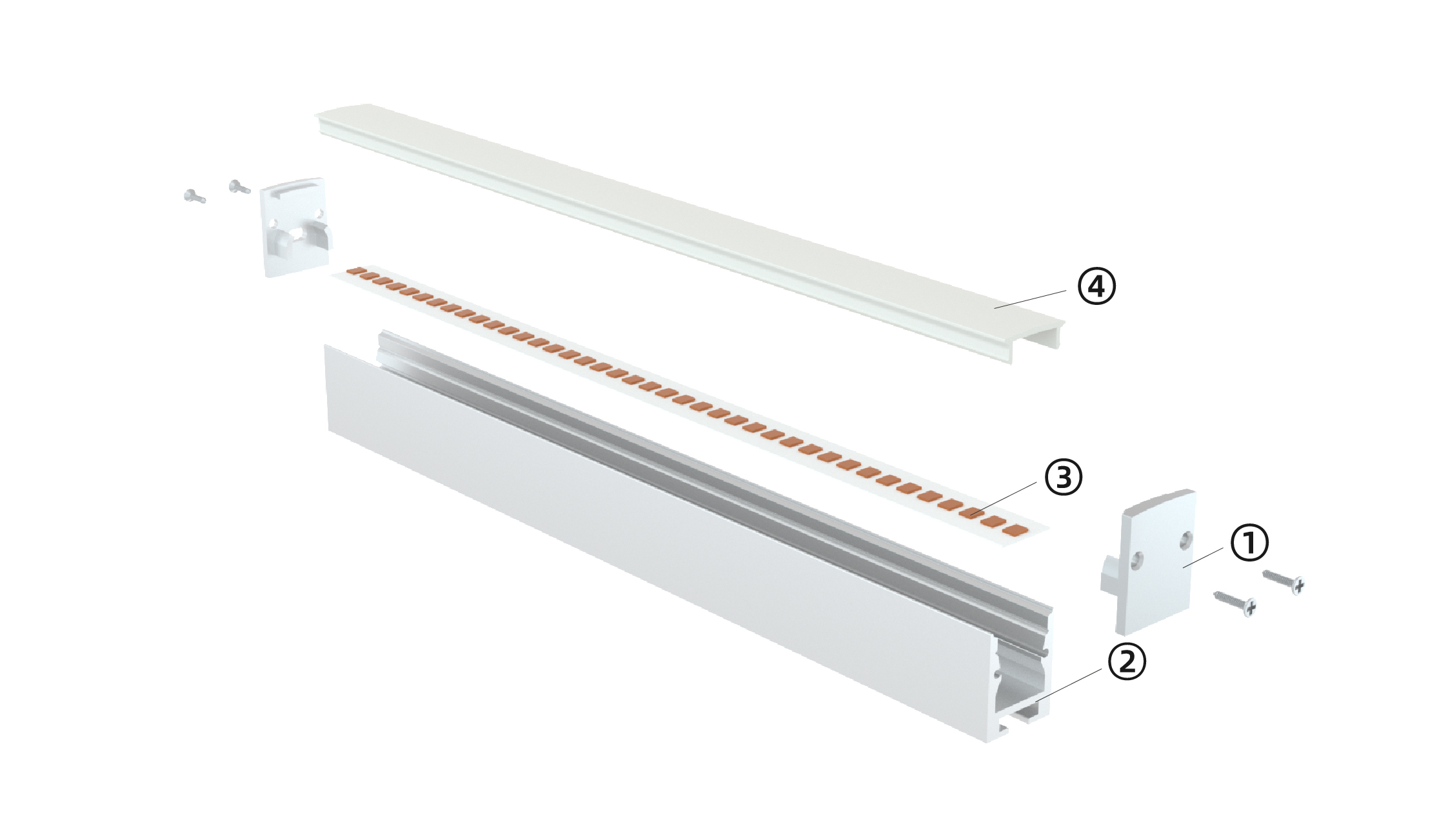

Information
-
①End cap
Hole:17218
W/O hole:17219
-
② Profile
-
③ Lighting source
-
④ Cover
Trans/Opal/Diffuser
16082/16083/16084
Heated structure
Downloads
Catalogue pageProducts
Order Guide
| COVER | Trans/Opal/Diffuser | 16082/16083/16084 |  |
END CAP | Hole/W O hole | 17218/17219 |    |
PENDANT | / | LSXXXXSDZJ |    |
CONNECTOR | LSXXXXSPJX | X 30°≤∠ A ≤ 150° |  |
CONNECTOR | LSXXXXSPJY | T 30°≤∠ B ≤ 150° |  |
CONNECTOR | LSXXXXSPJLC | L 30°≤∠ C ≤ 330° |  |
CONNECTOR | LSXXXXSPJLD | L(vertical） 30°≤∠ C ≤ 330° |  |
CONNECTOR | LSXXXXSPSJ | 120°splicing strip |  |
CONNECTOR | LSXXXXSPJLA | 60°splicing strip(vertical） |  |
CONNECTOR | LSXXXXSPJLB | 120°splicing strip(vertical） |  |
CONNECTOR | / | 1707019 |  |
CONNECTOR | / | 1707019 |  |
CONNECTOR | / | 1707019 |  |
Application effect1
