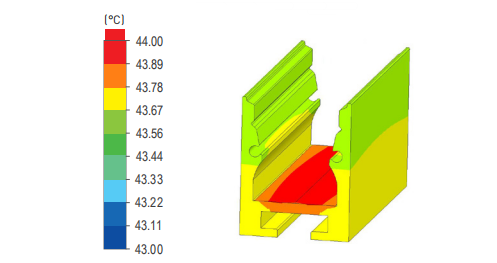

Temperature ambient:25°C
LED strip:D8280-24V-8mm(14.4W/m)
Temperature (solid) (°C)
exterior view 1 : contour line

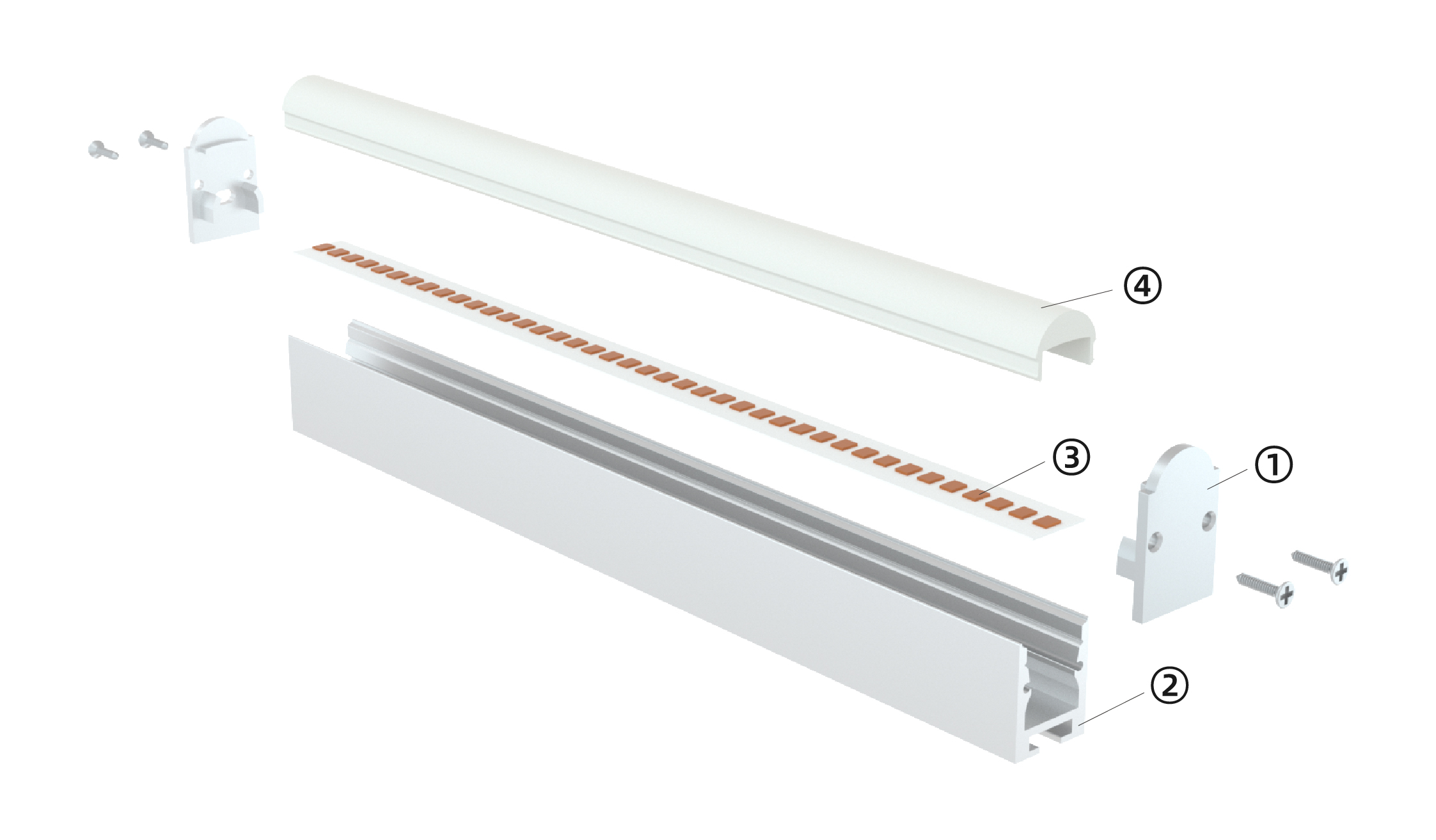

Information
-
①End cap
Hole:1721B8
W/O hole:1721B9
-
② Profile
-
③ Lighting source
-
④ Cover
Trans
1707C2
Heated structure
Downloads
Catalogue pageProducts
Order Guide
| COVER | Trans | 1707C2 |  |
END CAP | Hole/W O hole | 1721B8/1721B9 |    |
PENDANT | / | LSXXXXSDZJ |    |
CONNECTOR | LSXXXXSPJX | X 30°≤∠ A ≤ 150° |  |
CONNECTOR | LSXXXXSPJY | T 30°≤∠ B ≤ 150° |  |
CONNECTOR | LSXXXXSPJLC | L 30°≤∠ C ≤ 330° |  |
CONNECTOR | LSXXXXSPJLD | L(vertical） 30°≤∠ C ≤ 330° |  |
CONNECTOR | LSXXXXSPSJ | 120°splicing strip |  |
CONNECTOR | LSXXXXSPJLA | 60°splicing strip(vertical） |  |
CONNECTOR | LSXXXXSPJLB | 120°splicing strip(vertical） |  |
CONNECTOR | / | 180°splicing strip |  |
CONNECTOR | / | 90°splicing strip(vertical） |  |
CONNECTOR | / | 90°splicing strip |  |

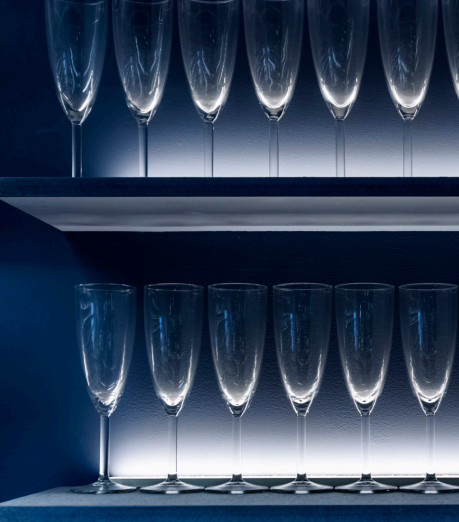

Application effect1
