Temperature ambient:25°C
LED strip:D8280-24V-8mm(14.4W/m)

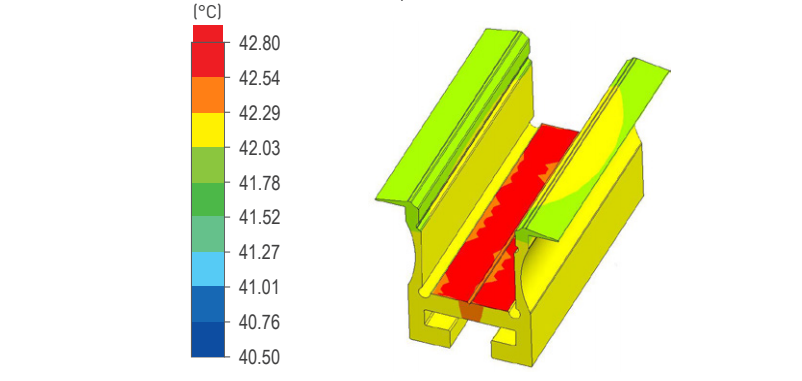

Temperature (solid) (°C)
exterior view 1 : contour line

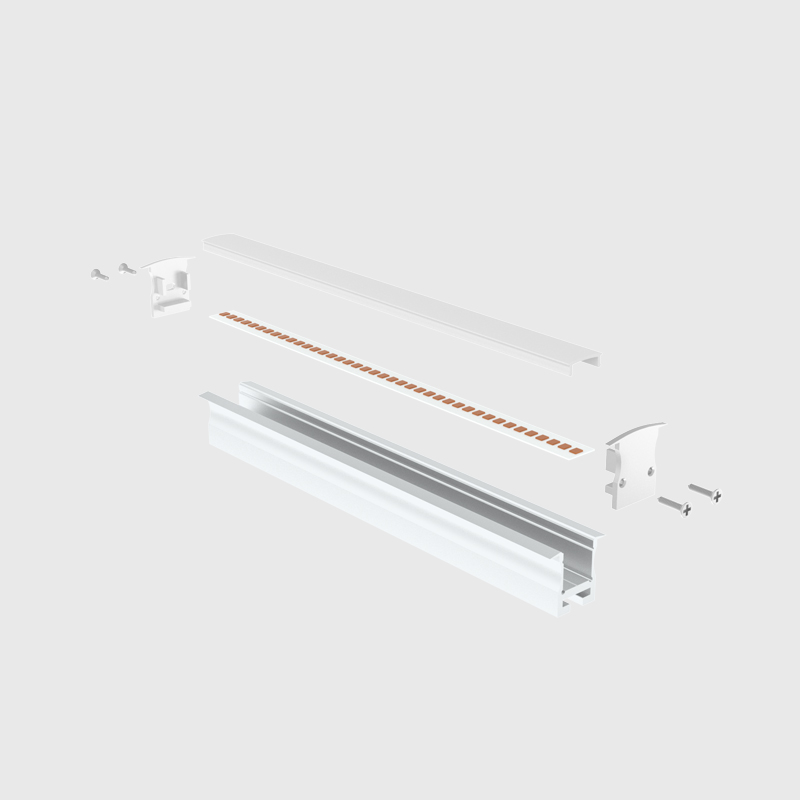

Information
-

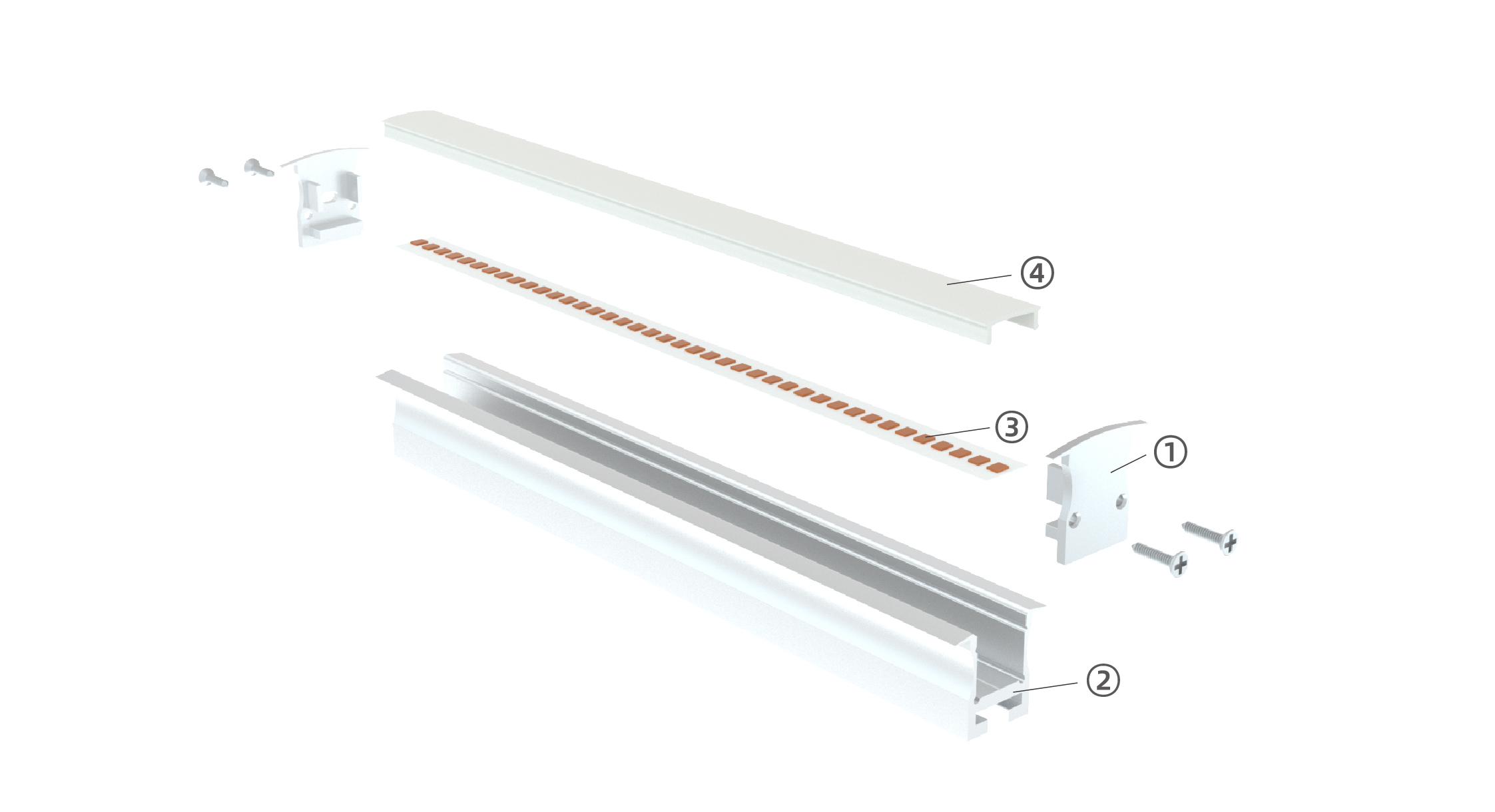

①End cap
Hole:27248
W/O hole:27249
-
② Profile
-
③ Lighting source
-
④ Cover
Trans/Opal/Diffuser
16172/16173/16174
Heated structure
Downloads
Catalogue pageProducts
Order Guide
| COVER | Trans/Opal/Diffuser | 16172/16173/16174 |  |
| COVER | Black | 1617B |  |
END CAP | Hole/W O hole | 27248/27249 |    |
CONNECTOR | LSXXXXSPJX | X 30°≤∠ A ≤ 150° |    |
CONNECTOR | LSXXXXSPJY | T 30°≤∠ B ≤ 150° |  |
CONNECTOR | LSXXXXSPJLC | L 30°≤∠ C ≤ 330° |  |
CONNECTOR | LSXXXXSPJLD | L(vertical） 30°≤∠ C ≤ 330° |  |
CONNECTOR | LSXXXXSPSJ | 120°splicing strip |  |
CONNECTOR | LSXXXXSPJLA | 60°splicing strip(vertical） |  |
CONNECTOR | LSXXXXSPJLB | 120°splicing strip(vertical） |  |
CONNECTOR | LSXXXXSPJT | 180°splicing strip |  |
CONNECTOR | LSXXXXSPJLA | 90°splicing strip(vertical） |  |
CONNECTOR | LSXXXXSPJLB | 90°splicing strip |  |

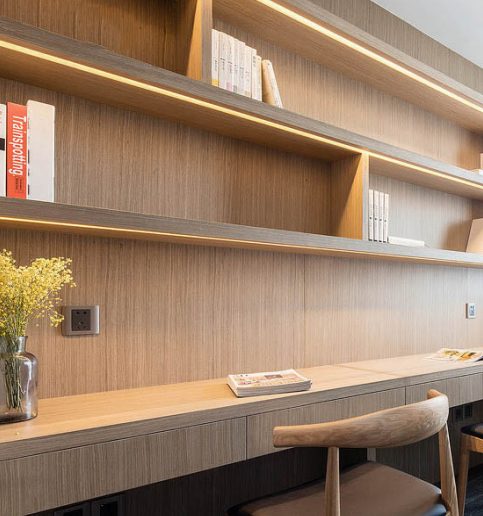

Application effect1
