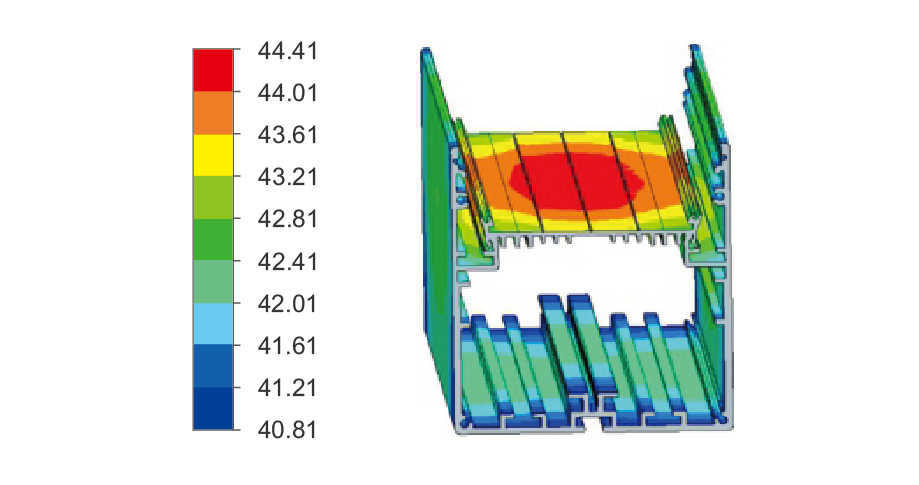

Temperature(solid) (° C)
exterior view 1 : contour line
Temper ature ambient:25°C
40W/m test

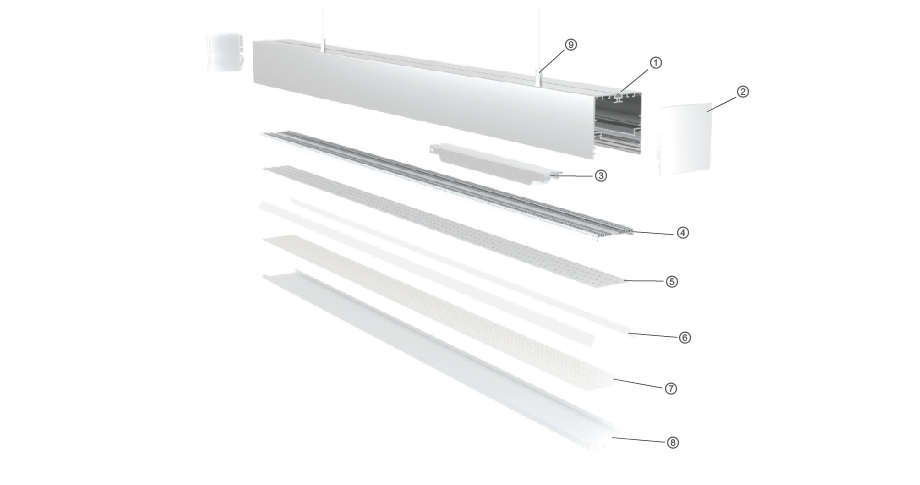

Information
-
①Profile
-
② End cap
-
③ Power supply
-
④ Heat sink
-
⑤ Lighting source
-
⑥ Reflective paper
-
⑦ Anti-glare film
-
⑧ Cover
-
⑨ Pendant
Heated structure
Downloads
Catalogue pageProducts
Order Guide
| Name | Order code | Discription | Size | Color | Picture |
| LS7578S-III-G kit | LS7578S-III-G001 | Profile+heat sink+cover | 75*78*2500mm | silver/black/whit（ral9016） |  |
| Profile | LS7578S-III-GPRO | AL 6063-T5 | 2500mm | silver/black/whit（ral9016） |  |
| Heat sink | LS7578S-III-GHSK | AL 6063-TS | 2500mm | silve/b1ack/White(ral9016) |  |
| Anti-glare film | LSXXXXFGP | Increase efficacy by 20% | 2500mm | White |  |
| Anti-glare film | LS7578S-III-GAGF | PET | 2500mm | transparent |  |
| Cover | LS7578S-III-NCOV | PC | 2500mm | transparent |  |
| Flexible cover | LS7578S-III-NC22 | PC | 20m | Diffuser（white） |  |
END CAP | LS7578S-Ⅱ002A | PC | 75*78mm | silver/black/white (ral9016) |    |
PCB | NJG-499-12C10B-2 | Lumen:3000LM P: 36W/m,Ra>80 | Width: 23mm | |  |
LS5270S-III-G-T | LS7578S-III-G-T | standard part | - | silver/black/white（ral906） |  |
| LS7578S-III-G-X | LS7578S-III-GZJX | standard part | - | silver/black/white（ral906） |  |
| LS7578S-III-G-L | LS7578S-III-GZJL | standard part | - | silver/black/white（ral906） |  |
| LS7578S-III-G-L-IN | LS7578S-III-GZJI | standard part | - | silver/black/white（ral906） |  |
| LS7578S-III-G-L-OUT | LS7578S-III-GZJO | standard part | - | silver/black/white（ral906） |  |

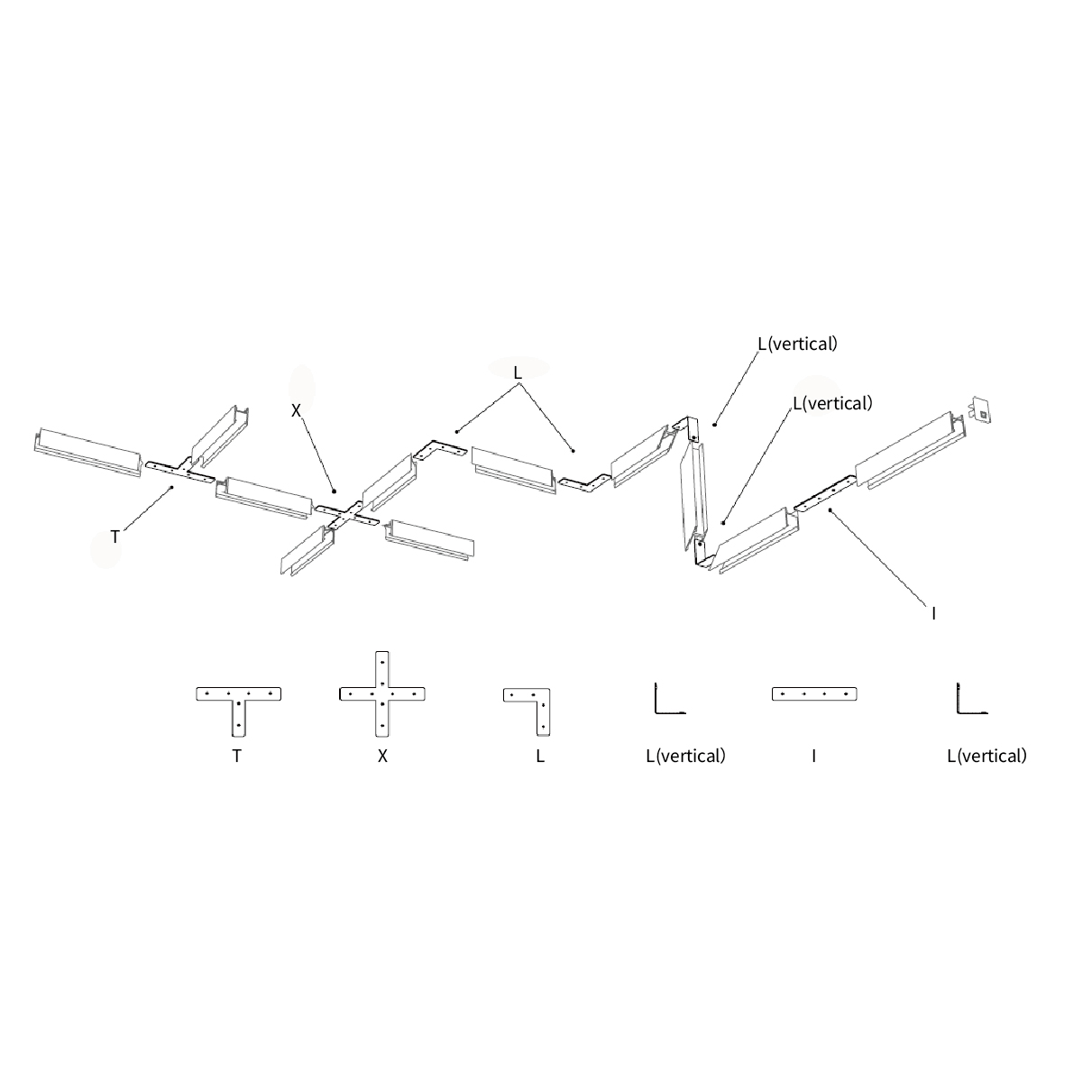

| Free connector | LSXXXXSPJX | X 30°≤∠A≤150° | - | Silver |  |
| Free connector | LSXXXXSPJY | T 30°≤∠B≤150° | - | Silver |  |
| Free connector | LSXXXXSPJLC | L 30°≤∠C≤150° | - | Silver |  |
| Free connector | LSXXXXSPJLD | L(vertical） 30°≤∠C≤150° | - | Silver |  |
| Splicing kit | LSXXXXSPSJ | 120° splicing strip | - | Silver |  |
| Splicing kit | LSXXXXSPJLA | 60° splicing strip | - | Silver |  |
| Splicing kit | LSXXXXSPJLA | 120° splicing strip | - | Silver |  |
| Splicing kit | LSXXXXSPJT | Connector+screw | 45*9.3*2.0mm | Silver |  |
| Splicing kit | LSXXXXSPJLA | Connector+screw | - | Silver |  |
| Splicing kit | LSXXXXSPJLA | Connector+screw | - | Silver |  |
Terminal box | LSXXXXSJXH | Anti-fire PC | 80*80*38mm | Silver |  |
| Pendant kit | l.SXXXXSDZJ | Steel wire、CDpper | 2000mm | silver |  |
| Pendant kit | l.SXXXXSDZJ-01 | Steel wire、Opper | 2000mm | silver |  |
| Tenninal box | LSXXXXSJXH-01 | Iron | Φ130mm*H38mm | silver/black/white (ral9016) |  |
| Tenninal box | l.SXXXXSJXH-02 | Iron | Φ130mm*H38mm | silver/black/white (ral9016) |  |
| Tenninal box | l.SXXXXSJXH-03 | Iron | Φ130mm*H38mm | silver/black/white (ral9016) |  |
Embed buckle | LSXXXXSNQB | Stainless steel | - | Silver |  |
Surface mounted clip | LSXXXXSPJBM | Stainless steel | - | unpainted stainless steel |  |
Wire protection | LSXXXXHXB | PWB:3X4mm | - | - |  |

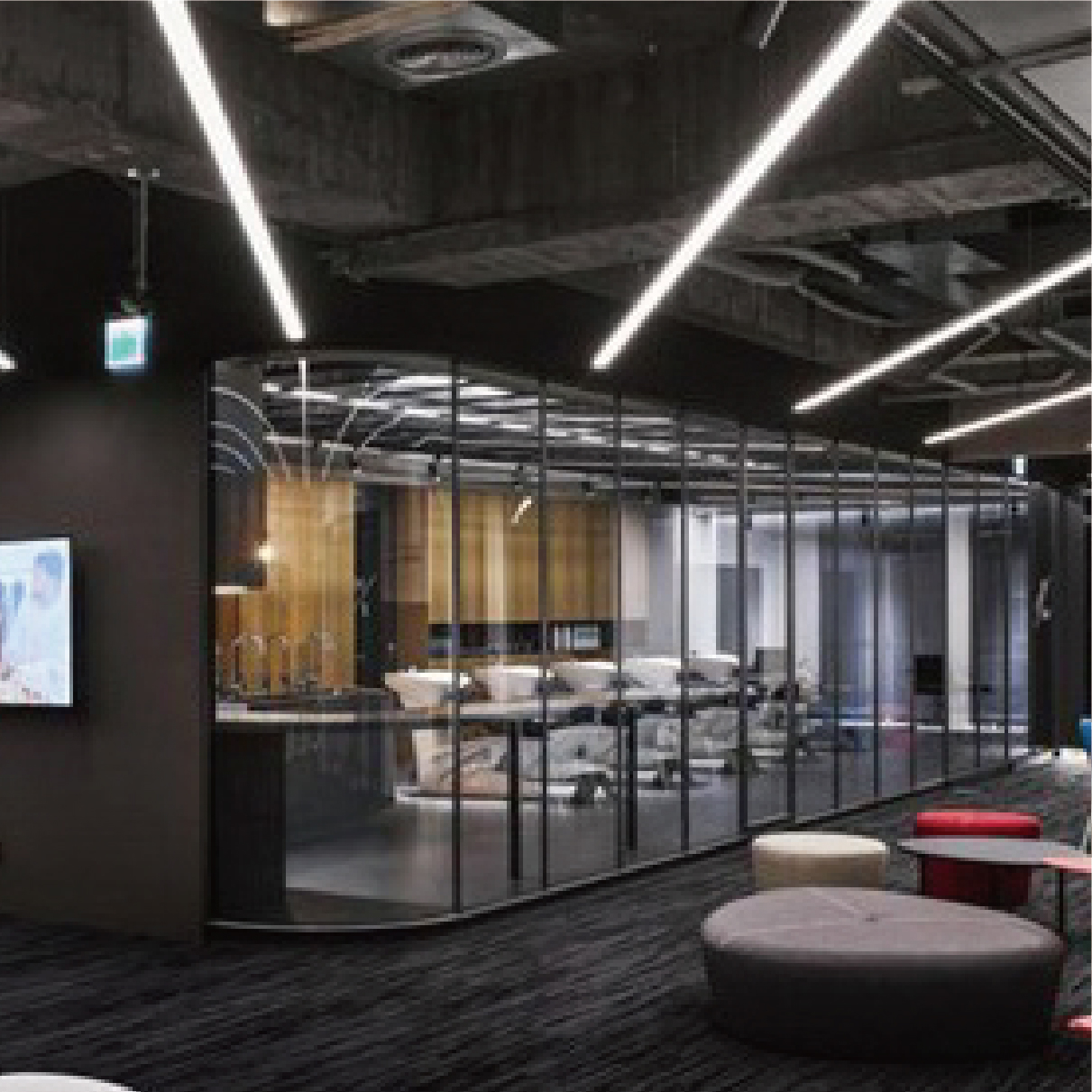

Application effect1
